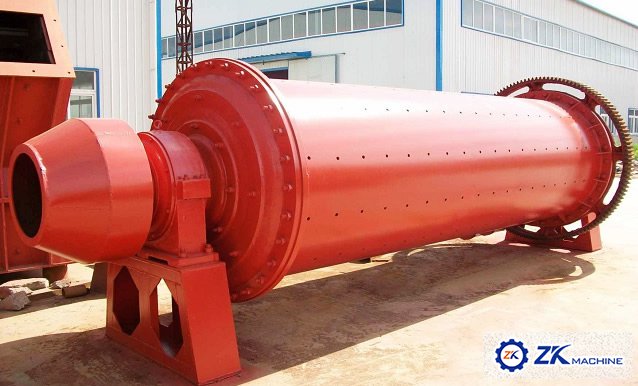

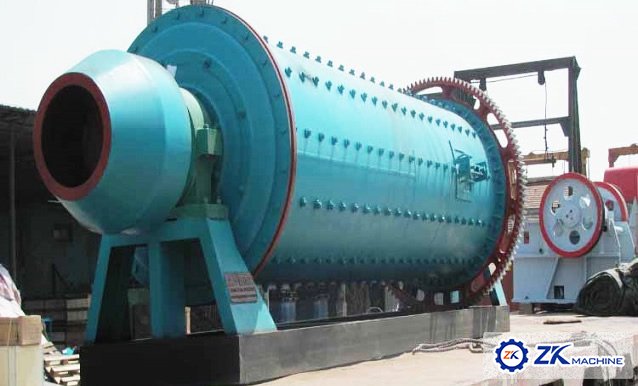

Overflow Ball Mill

Type: MB Series Wet Type Overflow Ball Mill



Grinding media weight: 2.3 - 51 (t)



Feed size: < 25 (mm)



Outlet size: 0.16 - 5 (mm)

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

The overflow type of Ball Mill is designed to overflow and discharge materials from the trunnion on the outlet side. By combining it with a mechanical classifier or wet-processing cyclone, you are able to extensively use this type for grinding in closed circuit or for special applications such as re-grinding in open circuit. Generally, it is best suited to fine-grind materials up to the particle sizes ranging from 150 to 200 mesh.

Product Name Wet Type Overflow Ball Mill
Minimum Output Size 0.045 mm (325 mesh)
Capacity Up to 160t/h
Working Power 15 - 1250 kw
Saving Energy 20% - 30%
Application For Grinding Metal ore & Non-metallic ore
(Cu-Pb-Zn/Silver/Hematite/Magnetite/Antimony/Chrome/Nickel/Tin...)
Delivery Time 15-30 days
Shipping Port Qingdao, China
Products Features high efficiency, huge processing capacity, smooth operation
Service Engineer service in customer's country
Past Exported Countries India/ Ethiopia/ Sudan/ Iran /Brazil / Russia/ Zimbabwe/ Tanzania/ Indonesia

Our Service:
Packaging & Delivery


Technical Support

Successful Cases

Features

1. The motor power matched the overflow ball mill can be reduces by 18%-25%, energy saving should be more than 20%.
2.The customers don’t need change the main bearing frequently so that can save a lot of maintenance costs and work time.
3. The main bearing adopts grease lubrication, which can be protected from heavy metal pollution.
4. The whole processing is smooth and reliable.

Parameter

Model

Rotation speed
(r/min)

Media weight
(t)

Mater-in grade
(mm)

Mater-out grade
(mm)

Capacity
(t/h)

Power

(kw)

Dimensions
(mm)

Weight
(kg)

MB0918

29.0-31.3

2.3

<25

0.16-5

1.6-6

22

5900x2356x2015

6200

MB0924

29.0-35.4

3.1

<25

0.16-5

2.9-10

30

5250x2480x2127

6600

MB1224

27.0-34.0

6.5

<25

0.16-5

5.0-13

55

5829x2867x2540

13500

MB1530

26.5-29.5

11.5

<25

0.16-5

6.0-25

95

7635x3329x2749

18170

MB1830

21.6-22.8

17.5

<25

0.16-5

4.8-28

155

8007x3873x3023

35000

MB2130

19.0-21.0

23.5

<25

0.16-5

12.6-30

155

9000x2800x3800

43000

MB2136

19.0-21.0

23.2

<25

0.16-5

15.1-45

210

9600x2800x3800

58000

MB2736

17.2-18.5

47.0

<25

0.16-5

25.0-75

400

10870x6100x4950

71500

MB2740

17.2-18.5

51.0

<25

0.16-5

27.7-90

420

11500x6100x4950

73600
