Introduction

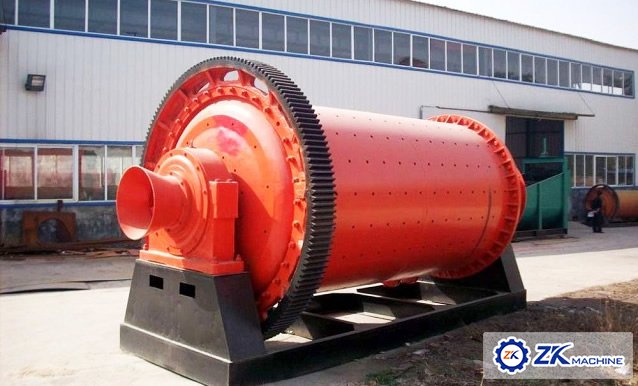

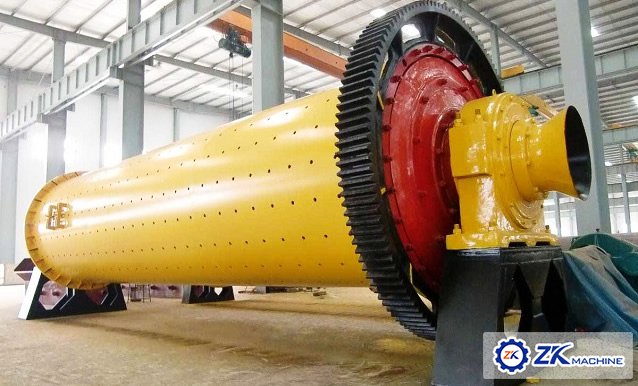

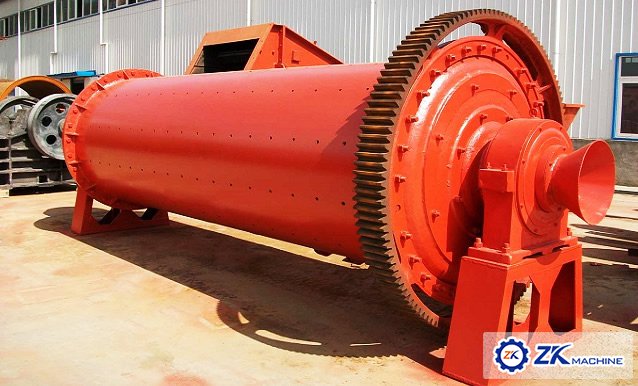

Cone Ball Mill changes the instrinsic grinding machinestructure.its is body and ground plank are integral whole so when fixing. It can be lowered on a plane surface once only use double tired rol ler axletree with grille pattern forcing evacuation is instead by overfall patten controlling one. This can improve the milling of the granule and the quality dealt with is inc reased by 15%-20%.

Working Principle of Cone Ball Mill:

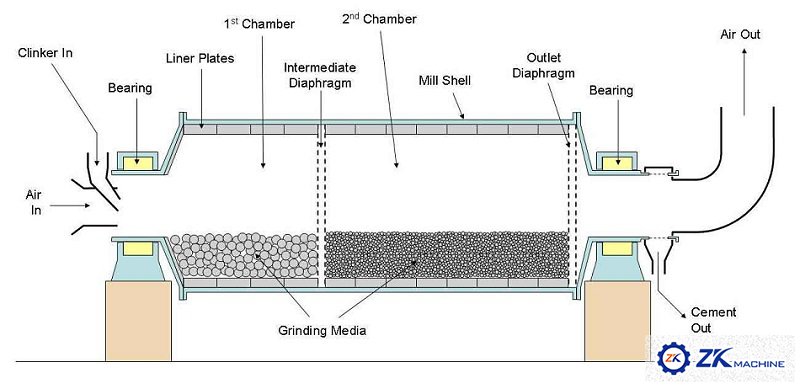

The cone ball mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth. Then the whole grinding process is ended.

Our Service:
Packaging & Delivery

Technical Support

Successful Cases

Parameter

Model	Standards of  Cylinder (Diameter x  Length ) (mm)	Rotating  Speed  of  the  Cylinder (r/min)	Weight  of  loading-balls (t)	Granularity  of  feeding  materials (mm)	Granularity  of discharging  -materials (mm)	Output (t/h)	Motor		External  Dimension (LxWxH) (mm)	Weight (kgs)
							Model	Power (kW)
GZM1541	Φ1500x4100	31	12	≤30	0.074-0.3	4.1-11	JR125-8	95	7970x2938x2490	19320
GZM1544	Φ1500x4400	31	14	≤30	0.074-0.3	4.7-12.5	JR126-8	110	8270x2938x2490	20702
GZM1556	Φ1500x5600	27.6	16	≤30	0.074-0.6	3.6-25	JR126-8	110	9470x2938x2490	22676
GZM1836	Φ1830x3600	25.2	13.7	≤25	0.074-0.6	2.8-21	JR127-8	130	8560x3812x3134	36254
GZM1842	Φ1830x4200	25.2	16	≤25	0.074-0.6	3.5-25	JR128-8	155	9160x3812x3134	37106
GZM1846	Φ1830x4600	25.2	17.5	≤25	0.074-0.6	3.5-26	JR128-8	155	9560x3812x3134	37483
GZM1856	Φ1830x5600	25.2	20	≤25	0.074-0.6	4-30	JR136-8	180	10385x3910x3334	40785
GZM2145	Φ2100x4500	23.8	22	≤25	0.074-0.5	5-35	JR138-8	245	9400x3920x3394	46009
GZM2158	Φ2100x5800	23.8	25	≤25	0.074-0.5	7-43	JR1410-8	280	10700x3920x3394	55930
GZM2727	Φ2700x2700	21.7	25	≤20	0.074-0.5	9-74	JR138-8	245	7093x4897x4385	56757
GZM2733	Φ2700 x 3300	21.7	32	≤25	0.074-0.5	11.8-92.7	JR157-8	320	9290x5610x4510	71482
GZM2736	Φ2700x3600	21.7	34	≤25	0.074-0.5	12.5-80	JR158-8	380	9590x5610x4510	74209
GZM2742	Φ2700x4200	21.7	36	≤25	0.074-0.5	15-117	JRQ158-8	380	10190x5610x4510	82777
