Sand Rotary Dryer

Model: Φ0.6x6 - Φ3x25 (m)



Capacity: 0.5 - 40 (t/h)



Applied material: river sand, quartz sand, silica sand, etc.



Application: mining industry, sand stone industry, etc.

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

PRODUCTS LIST

HOT PRODUCTS

CONTACT US

E-mail：  mic@zkcorp.com

Whatsapp：+86 15237956296

Send Message
Chat Now

Introduction

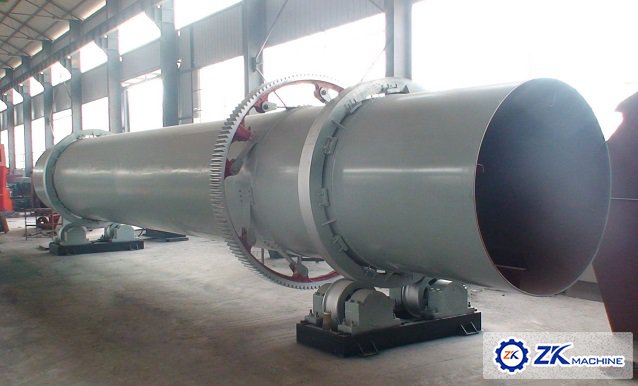

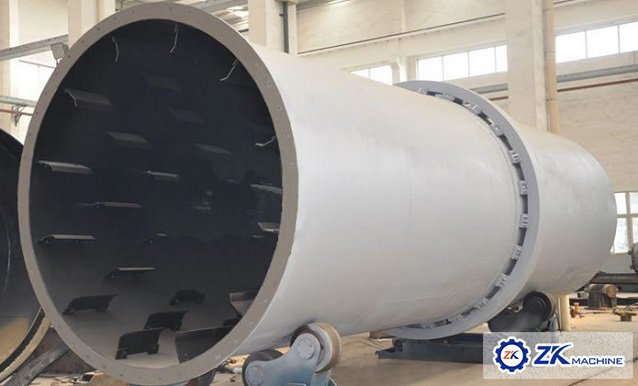

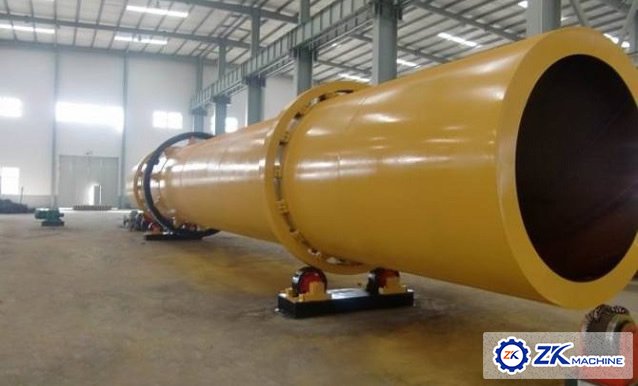

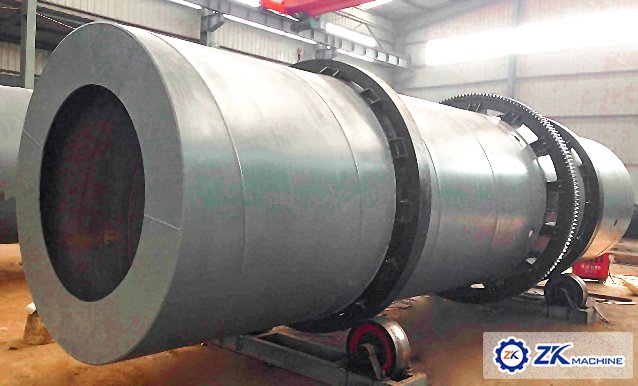

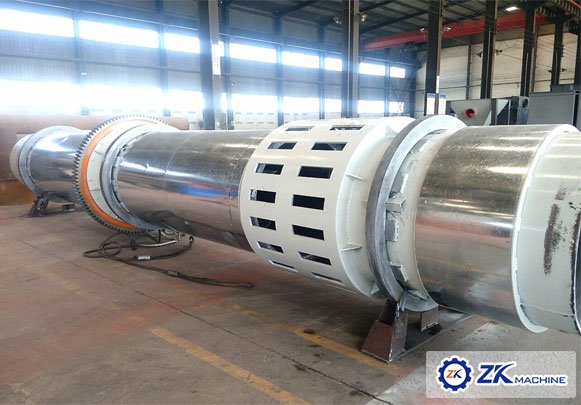

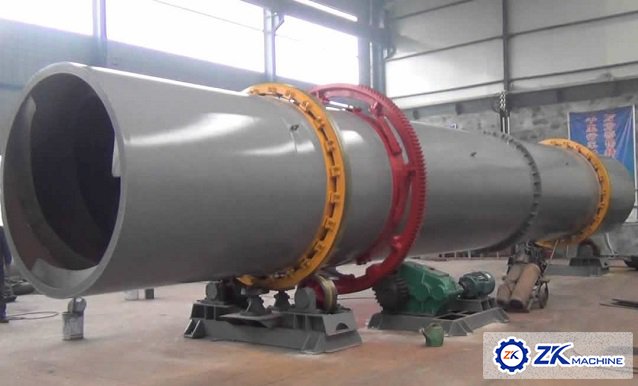

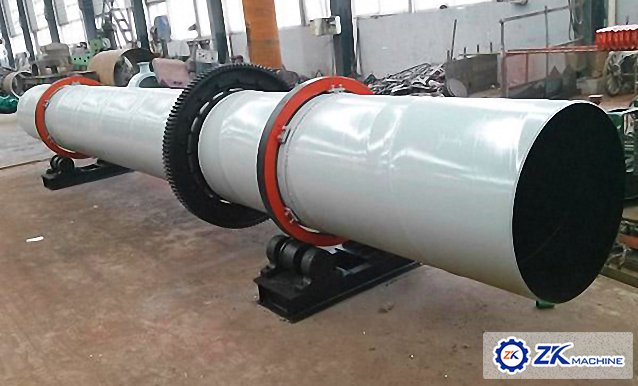

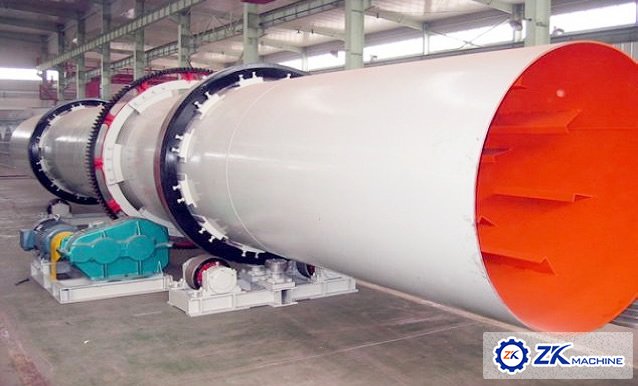

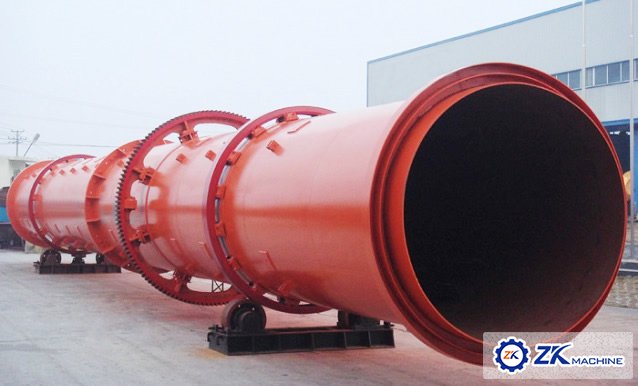

Sand rotary dryer is the professional drying equipment to process the a variety of sandstone such as quartz sand, river sand, yellow sand, garnet sand, slag, clay, etc. It is mainly composed of rotary part, lifting board, transmission part, supporting part and seal ring.

The rotary drum dryer produced by our company uses reasonable running parameters, and the coal and electricity consumption is reduced by over 10-15% and the output per machine is improved by over 10-15%,

Thanks to reliable running, flexible operation, strong suitability and high handling capacity, this sand dryer equipment suitable for all kinds of material such as sand, agricultural waste, silica sand, coal slime, coal, slurry, anthracite coal, aluminum powder, gypsum, mineral powder, manganese ore powder, sludge, coal ash, iron powder, fluorite powder, fertilizer, etc.

Features

1. High drying strength, high dealing capacity, low consumption and low drying cost.

2. Our rotary drum dryer has the characteristics of high temperature resistance, and it can use high temperature hot air to dry the materials fastly.

3. It adopts self-aligning riding wheel structure, the riding wheel and roller ring cooperate well, and it can greatly reduce the wearing and power consumption.

4. Special designed catch wheel structure, which reduce the horizontal thrust caused by the equipment tilt work.

5. High resistance of overload ability, roller body is stable working and higher reliability.

Parameter

Model
(mm)
Gradient
(%)
Rotate speed (r/min)
Inlet air temperature(°c)
Powder
(kw)
Capacity
(t/h)
Weight(t)
Φ 600x6000
3-5
3-8
≤700
3
0.5-1.5
2.9
Φ 800x8000
3-5
3-8
≤700
4
0.8-2.0
3.5
Φ 800x10000
3-5
3-8
≤700
4
0.8-2.5
4.5
Φ 1000x10000
3-5
3-8
≤700
5.5
1.0-3.5
5.6
Φ 1200x10000
3-5
3-8
≤700
7.5
1.8-5
14.5
Φ 1200x12000
3-5
3-8
≤700
11
2-6
14.8
Φ 1500x12000
3-5
2-6
≤800
15
3.5-9
17.8
Φ 1800x12000
3-5
2-6
≤800
18
5-12
25
Φ 2200x12000
3-5
1.5-6
≤800
18.5
6-15
33
Φ 2200x18000
3-5
1.5-6
≤800
22
10-18
53.8
Φ 2200x20000
3-5
1.5-6
≤800
30
12-20
56
Φ 2400x20000
3-5
1.5-5
≤800
37
18-30
60
Φ 3000x20000
3-5
1.5-5
≤800
55
25-35
78
Φ 3000x25000
3-5
1.5-5
≤800
75
32-40
104.9
