DTII Belt Conveyor

Model: DTII 500 - 1000



Belt Length: 2 - 240 (m)



Belt Width: 500 - 1400 (mm)

Applied material: Cement, Coal, Ore, Sand, Rock, Limestone, etc.

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

DTII belt conveyor is the upgrade product from TD75 belt conveyor, its adaptability is stronger, and be widely used. The operation temperature of belt conveyor is from -25℃~40℃, and request temperature of conveyed materials not exceed 60℃; The heat resistance rubber belt can convey the high temperature materials that below 120℃, the belt conveyor is not suitable for convey higher temperature materials. The oil-resistance, acid resistance rubber belt are used to convey acid, alkaline, oil materials and some materials with organic solvent.

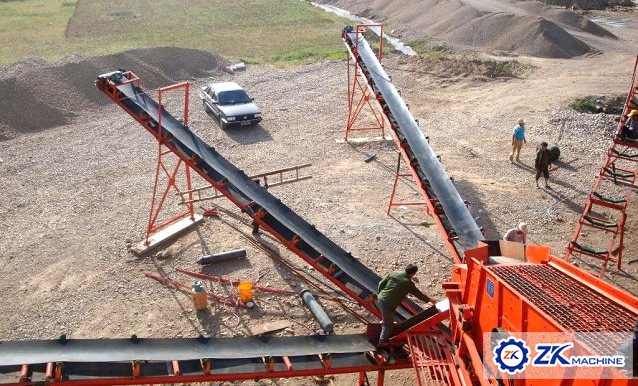

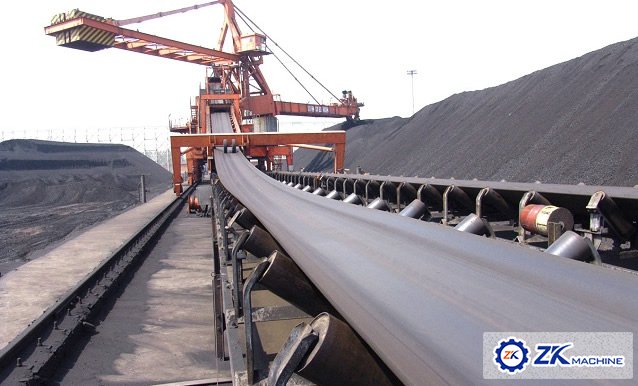

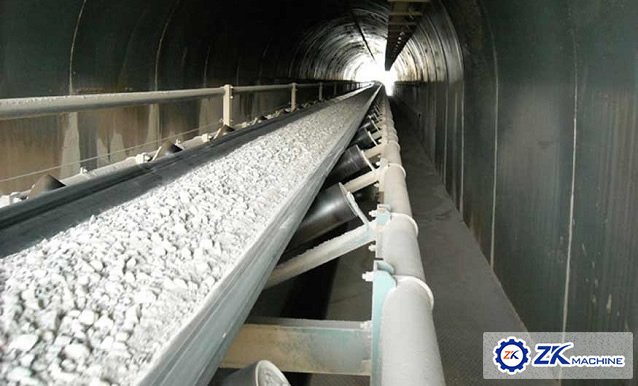

Belt Conveyor is used widely in metallurgy, mine, building, coal, transportation, hydropower, harbors industries, and used to convey bulk materials, block materials and packaged product. The belt conveyor can transport materials alone and multi-drop or form horizontal, inclined or vertical conveyor system with other conveyors.

Product   Name Belt   conveyor
Material stainless steel / carbon steel
Color As requirements.
Standard B500, B650, B800, B1000, B1200, B1400
Length As requirements, max. length can be 500m
Power As requirements.
Capacity As reguirements.
Used building materials industry machinery, cement machinery, mining factory.

Features

1.The range of conveyed materials is widely. Wet, dry, powder, block materials and packaged product are can be used belt conveyor;
2.The capacity is large, the convey distance is length;
3. Multiple spot feeding and discharge can be realized in one belt conveyor;
4. Continue operation , running steady and small noise;
5. Simple structure, work reliable , easy operation ,installation and maintenance.

Parameter

Spec

Rubber belt

Length
(m)

Dia. of drive drum
(mm)

Max. feeding size
(mm)

Capacity
(m³/h)

Power
(kW)

Width
(mm)

Speed
(m/s)

Slope
(°)

DTⅡ-500

500

0.8~2.5

0~20°

2~240

400、500、630

100

69~217

1.5~30

DTⅡ-650

650

0.8~2.5

0~20°

2~240

400、500、630

150

127~397

1.5~45

DTⅡ-800

800

0.8~3.15

0~20°

2~240

400、500、630

200

198~781

2.2~75

DTⅡ-1000

1000

0.8~3.15

0~20°

2~240

500、630、800

300

324~1622

7~100
