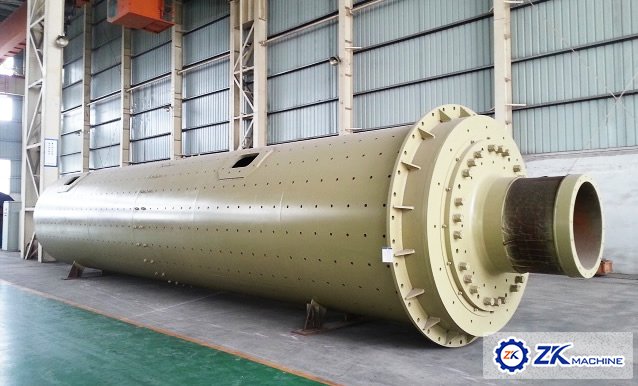

Ore Ball Mill

Model : Φ900x1800 - Φ3200×4000 (mm)



Feed size: ≦ 15/25 (mm)



Capacity: 0.5 - 180 (t/h)



Grinding type: Dry / Wet type

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

HOT PRODUCTS

CONTACT US

E-mail:  mic@zkcorp.com

Whatsapp:+86 15237956296

Introduction

Ore ball mill is used to separate and screening different ore minerals, separate ore tailing. It also be used for ore grinding, non-ferrous metal beneficiation, new-type building material producing. Ore ball mill is mainly applied to the powder processing of mineral products in the industries of metallurgy, construction materials, chemical, and mining, etc.

Ore ball mill can produce powder from various non-flammable and non-explosive mineral materials with Mohs hardness below 9.3 and humidity below 6%. The product size is adjustable in the range of 80-425 mesh. Ore ball mill is possible to produce 30-80 mesh coarse powder through special device in the machine if necessary.

Applicable materials: Copper ore, iron ore, gold ore, silver ore, chrome ore, hematite ore, manganese ore, molybdenite ore, tungsten ore, barite, limestone, kaolnite, ceram and slags, etc.


Our Service:
Packaging & Delivery


Technical Support

Successful Cases

Features

1. High grinding efficiency, low consumption; Product fineness is adjustable and uniform;

2. Low energy consumption, low wear, low operating costs; Small vibration, low noise, environmental friendly;

3. Liner is made of high-quality wear resistant material with high strength, wear resistance and long working life;

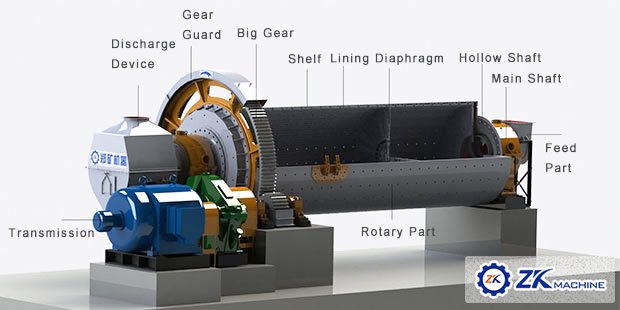

4. The hollow shaft uses steel casting, the inner lining can be dismantled and changed, and the rotary rack wheel uses casting gear hobbing and inside the cylinder there is wear-resisting lining board which has fine abrasion performance.

Parameter

Model
(mm)
Speed
(r/min)
Max. weight of balls (t) Input size
(mm)
Output size (mm) power
(kw)
Capacity
(t/h)
Weight
(t)
Φ900×1800 37 1.8 ≤15 0.075-0.89 15 0.5-2 3.4
Φ900×2100 37 2.3 ≤15 0.075-0.4 18.5 0.4-2 3.9
Φ900×3000 35 3.85 ≤25 0.075-0.4 30 1.1-2.5 7.78
Φ1200×2400 35 4.6 ≤25 0.075-0.4 30 1.3-3.2 8.65
Φ1200×2800 35 5.4 ≤25 0.075-0.4 37 1.5-3.7 10.02
Φ1200×4500 35 8.6 ≤25 0.075-0.4 45 2.7-6.79 14
Φ1500×3000 29 9 ≤25 0.047-0.4 75 3.3-8.2 14.12
Φ1500×3500 29 10.5 ≤25 0.047-0.4 75 3.3-8.5 15.64
Φ1500×4500 29 13.5 ≤25 0.047-0.4 90 4.5-12 20
Φ1500×5700 29 17 ≤25 0.047-0.4 110 2.6-14 21.5
Φ1830×3000 24 13.5 ≤25 0.047-0.4 135 4-15 28
Φ1830×3600 24 14 ≤25 0.047-0.4 135 4-15 29
Φ1830×4500 24 20 ≤25 0.047-0.4 155 4-19 32
Φ1830×7000 24 31.5 ≤25 0.047-0.4 210 6-22 37.5
Φ2100×3000 22 18 ≤25 0.047-0.4 210 6.4-28 40.79
Φ2100x3600 22 20 ≤25 0.047-0.4 210 7-28 42
Φ2100×4000 22 21.5 ≤25 0.047-0.4 210 7.6-28 43.45
Φ2200×3600 21.7 25 ≤25 0.047-0.4 245 5.2-32 44
Φ2200×7000 21.7 46 ≤25 0.047-0.4 380 15-38 63
Φ2400×3600 21 28 ≤25 0.047-0.4 320 8-60 47
Φ2400×4500 21 35 ≤25 0.047-0.4 380 8.5-60 70.5
Φ2700×3600 20.7 40 ≤25 0.047-0.4 400 12-80 75.5
Φ2700×4500 20.7 48 ≤25 0.047-0.4 450 12-90 102
Φ3200×4000 18 65 ≤25 0.047-0.4 800 30-180 137
