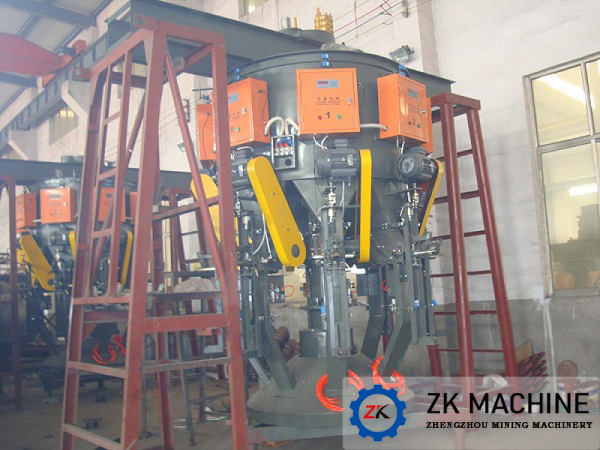

Brief Introduction of Cement Packing Machine

Date:2021-06-25 14:33:29 Author:admin Views: 213
The cement packaging machine, also known as cement packer, is a special equipment necessary for the production of bagged cement. It is used to complete the automatic packaging of cement. It can also be used to package other powdery materials with good flow properties (such as fly ash, cement additives, etc.). Therefore, it is used in small and medium-sized Cement plants are still widely used.
Working Principle of Cement Packing Machine
The working principle of the powder packaging machine: the cement material in the silo enters the shell of the packaging machine's discharge hopper, and the travel switch is activated while manually inserting the bag, and the signal is transmitted to the microcomputer. The running impeller continuously fills the cement material into the woven bag through the discharge nozzle. When the bag weight reaches the set value, the sensor transmits the signal to the computer, and the solenoid valve controls the cylinder to start the cylinder and close the discharge nozzle. Filling; At the same time, the solenoid valve is sucked in through the signal of the sensor, and the bag presser acts to make the packaging bag tilt out automatically. The entire filling process is controlled by electrical integration. In addition to manual bag insertion, the opening and closing of the cement bag pressing and discharging nozzle; cement filling bag, weighing and measuring, automatic bag dropping and other functions can be automatically completed. Thereby reducing mechanical failures and ensuring the efficient operation of packaging equipment.

Features of Cement Packing Machine
1. It has a wide range of applications. All powdery and granular materials with good flow properties can be packaged by this packaging machine.
2. Basically realize automation, filling, measuring, bag dropping and other actions are completed automatically and continuously.
3. The working environment is clean and environmentally friendly. The bag is not inserted or filled. The bag weighs less than the calibrated value and the bag will not be dropped. If the bag accidentally falls off, the shutter will be closed immediately to stop filling.
4. Simple maintenance, few wearing parts, no hydraulic and pneumatic components.
5. Eight-mouth to twelve-mouth rotary cement packaging machine is equipped with cement clearing machine, cement receiving machine, cement vibrating screen and feeder.

Cement packaging machines are mostly divided into fixed and rotary types. Fixed cement packaging machines refer to 1-4 nozzles packaging machines. The filling of cement is completed by manually moving the insert bags. Rotary cement packaging machines refer to 6-14 nozzles. Without moving, the packaging machine rotates to complete the insert bag filling.

The cement packing machine is mainly used for many industries, such as the chemical industry, building materials, mineral processing, highway, railway, and underground construction, which not only bring great convenience to these industries but also bring considerable benefits and efficiency.
