Production Procedures to Set up Cement Grinding Plant
Date:2021-05-25 16:59:40
Author:admin
Views:
125

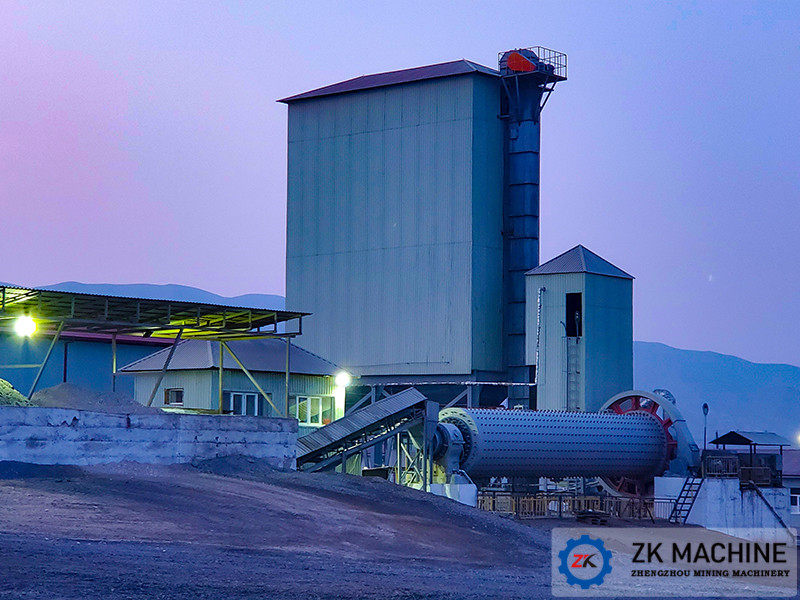

The cement clinker grinding plant or cement grinding station acts as an individual production line in the last period of the cement production process. In the finished product period, the cement clinker is ground by adding moderate mixing materials and then forms the finished cement.
Production Procedures of Cement Grinding Plant
There are three procedures of the cement grinding plant: raw material preparation, clinker burning and cement making. The production technology of the silicate cement is regarded as the representative one in the cement industry. It uses the limestone and clay as the main raw materials which are crushed, dosed and ground to be the primary raw materials. Then they are burnt to be clinker inside the cement kiln, and by adding certain gypsum (sometimes the mixed material or admixture) and do fine grinding, we get the finished products.

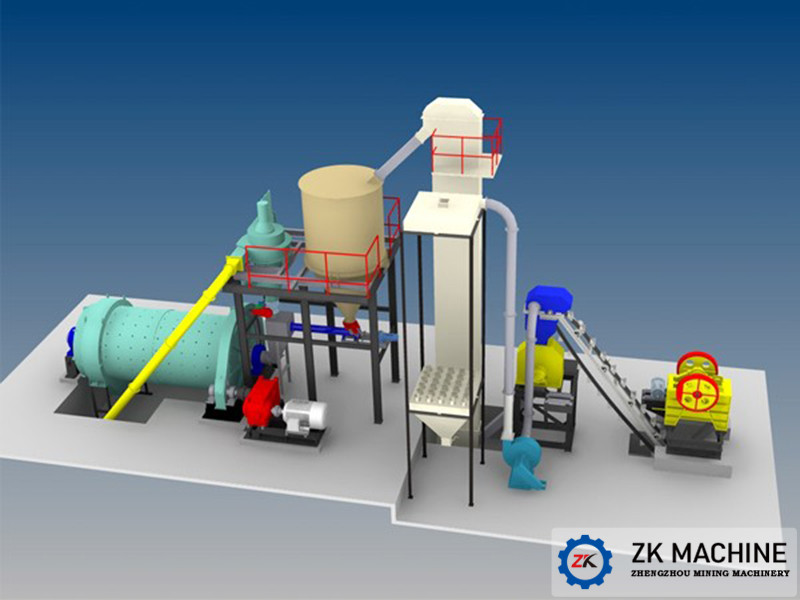

After gypsum, clinker and limestone are measured by the belt weigher, they will be mixed together in accordance with particular proportions, and then sent to the stable weighing warehouse. During this process, magnetic metals are removed by the iron remover from these materials. Then mixed materials will be sent into the rolling machine to be crushed. After crushed, they will be sent to the powder separator, in which coarse powder will be sent back to the grinding mill while the fine one will be sent to the elevator for finished products. Finally, they will be sent to finished product storage. Meanwhile, dusty gas from the grinding mill will be purified by the environmental protection equipment before discharged into the atmosphere.
Advantages of Cement Grinding Plant
1. High Efficiency
Cement grinding plant has high automation level, the operating process will adopt DCS central control system for adjustment, control and alarm in master control room, then the whole plant have less operator and also increase the working efficiency. The batching system have been adopt automatic quantitative feeding and measuring device, which have increase the material batching accuracy and also stablilizing the production’s quality.
2. Energy Saving
Adopting tube mill or vertical roller mill to producing qualify cement according to the raw material’s condition of clients. Producing system have adopt closed circuit to reduce the energy consumption of cement grinding. The single line scale can be from 15tpd to 1500tpd, which have been covered the cement factory’s different manufacture demand.
3. Environmental protection
Adoption of High efficiency air classifier and pulse type bag filter have created the circumstance for energy saving and energy consumption reduction.
4. High degree of automation
There is no manual operation in the process of mill running, which realizes the automatic control with long-term, stable, effective, makes milling process more stable, realizes fine work of production.
ZK Corp can supply cement grinding unit with features of simple process, easy operation, less equipment and low investment, energy saving and environmental protection.
As a professional project solution provider, we provide the custom-design solutions to cement manufacturing for every client. Our solution service includes equipment installation, operation, production, maintenance and so on. Any inquiries about the cement grinding plant, please kindly contact with us directly.
